PV Module Solar Equipment

PV Module cut Susceptibility testing machine

It's to determine whether any front and rear surfaces of the module of polymeric materials are capable of withstanding routine handling during installation and maintenance without exposing personnel to the danger of electric shock

Module Breakage Testing machine

The purpose of this test is provide confidence that cutting or piercing injuries can be minimized if the module is broken

Conduit Bending Testing Machine

PV Modules provided with junction boxes intended for attachment of a permanent wiring system using conduit must provide assurance of the ability of the box construction to with standard load forces which may be applied to the conduit during and after installation

Fall Ball Impact testing machine

To provide a mass of steel ball adjust the certain height, make it free fall, impact the sample and to view its damage level, use to determine the quality of  module, toughened glass and junction box quality

Terminal box knockout testing machine

SPECIFICATION 1、The flat round shaft: length 38mm, diameter 6.4mm 2、Junction box fixture 3、Weights automatic rise and down device

Wet Leakage Current Testing Machine

to evaluate the insulation of the module under wet operating conditions and verify that moisture from rain, fog, dew or melted snow does not enter the active parts of the module circuitry , where it might cause corrosion, a ground fault or a safety hazard

Mechanical Load Tester

This test is to determine the ability of the module to withstand wind, snow, static or ice loads.

Hail Impact Testing Machine

It's used to verification module resistance impact ability, artificial hockey use to simulate hail and to the constant speed impact component, simulate hail climate against the component effect.

PV Module Salt Mist Aging Testing machine

The test is used to test the anti-erosion of the surface of all materials after the rust-proof of painting, coating electroplating, anodising and rustproof of greasing.

PV Module push testing machine

It's as certain force applies on the one point of module surface, to determine module performance of resistance push.

Cord Anchorage pull testing Machine

This testing machine used to judge pv module lead terminal connect resistance pull performance.

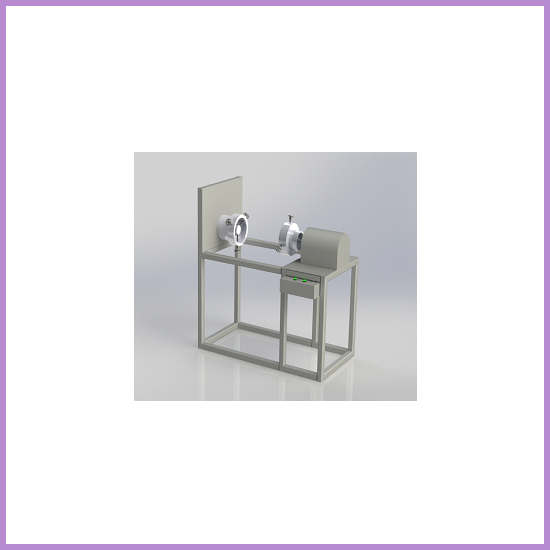

Cord Anchorage torsion testing machine

Simulate module during the installation process, The module cord anchorages are unintentionally or intentionally torsion, the machine use a motor to apply certain torsion on the cord anchorage and to determine cord anchorage torsion resistance performance.

UV preconditioning Testing machine

To precondition the module wiht Ultra-violet (UV) ratiation before the thermal cycle/humidity freeze tests to identify those materials and adhesive bonds that are susceptible ot UV degradation.

Damp -heating testing machine (environment chamber)

The testing chamber is to determine the ability of the module to withstand the effects of long-term penetration of humidity.

Thermal cycling/Humidity -freeze testing machine (environment chamber)

The testing chamber is to determine the ability of the module to withstand the effects of long-term penetration of humidity.

Peeling Strength Testing Machin

The testing chamber is to determine the ability of the module to withstand the effects of long-term penetration of humidity.

IP 1X Probe

Sphere Dia = 50 mm
Handle = Ø10 X 100 mm length
Guard = Ø45 X 4 mm thickness
Standard IS/ IEC – 60529, EN 60529

IP 2X probe (Jointed Test Finger) (Test Probe B)

Specification:
Knurled Finger Diameter = 12mm
Knurled Finger Length = 80mm
Baffle Plate Diameter = 50mm
Baffle Plate Thickness = 5 mm
Standard : IS/ IEC – 60529, EN 60529
